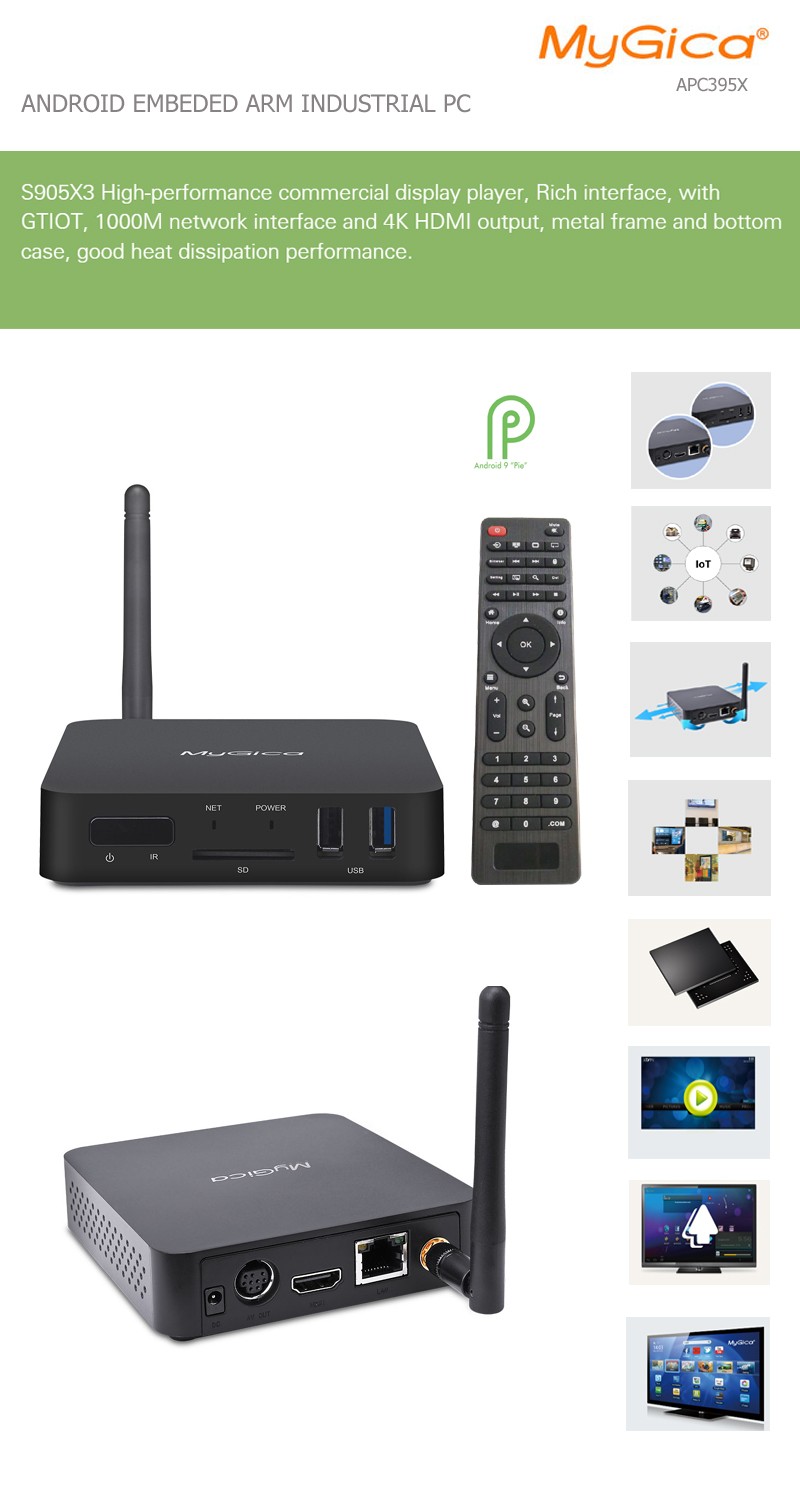

MyGica Industrial PC APC395X3

Is a powerful Android-embedded Industrial PC and an entry-level ARM |

Android Digital Signage Media Player Hardware

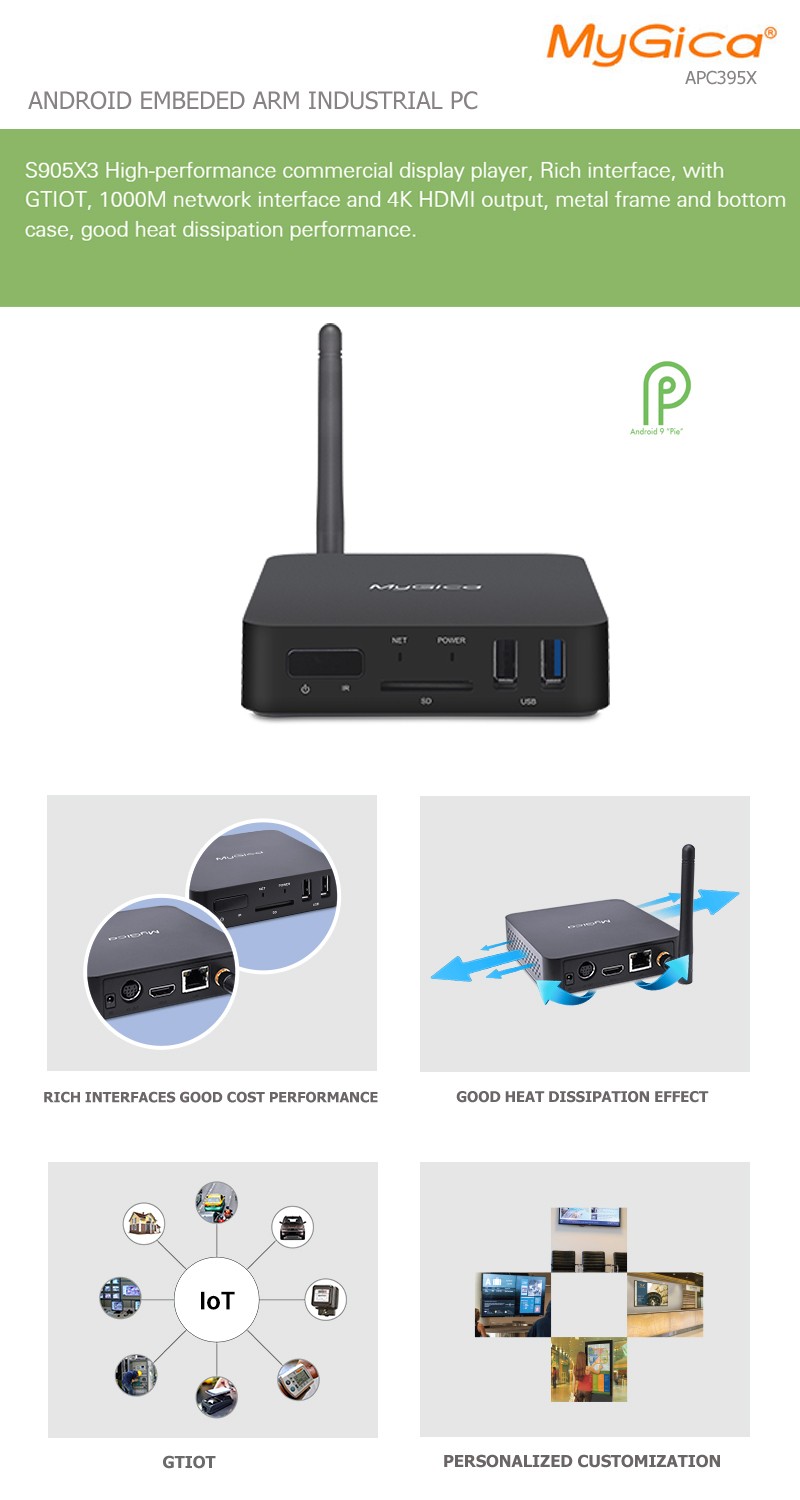

•  MyGica APC395X3 is a high-performance and compact Android PC designed for industrial, commercial, and enterprise applications, designed to run 24/7 with rugged use.

• With its powerful quad-core Arm Cortex-A53 S905X3 processor, built-in WatchDog & RTC, features 4K HDMI output, metal frame, and bottom case, good heat dissipation performance, and a wide range of I/O connectivity options, the APC395X3 delivers exceptional performance in a small form factor.

• The APC395X3 contains ARM A55*4 Quad-core CPU, 2GB DDR3, Mali-G31 MP2 850MHz GPU, and 8GB Flash.

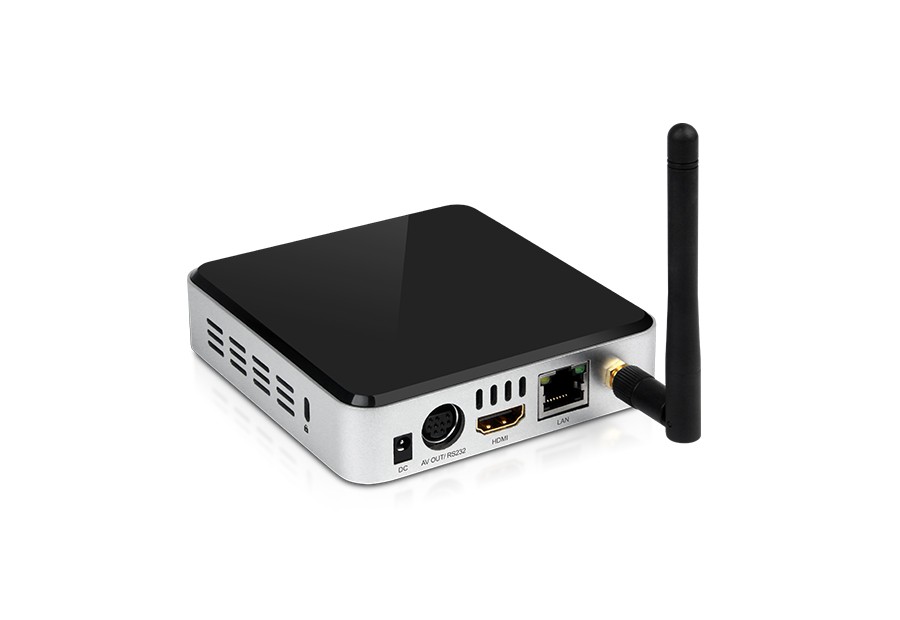

•  The device features various connectors, including HDMI, USB Host, and the industrial widely used connector RS232. With RS232, APC395X3 can easily communicate with industrial machines and network equipment.

• Android-based UltraHD 4k Media Player Hardware for Digital Signage APC395X3 is an Android digital signage media player hardware for industrial/commercial environments designed to run 24/7 with rugged use. ​

•  The APC395X3 contains ARM A55*4 Quad-core CPU, 2GB DDR3, Mali-G31 MP2 850MHz GPU, and 8GB Flash.

•  The device features various connectors, including HDMI, USB Host, and the industrial widely used connector RS232.  With RS232, APC395X3 can easily communicate with industrial machines and network equipment.

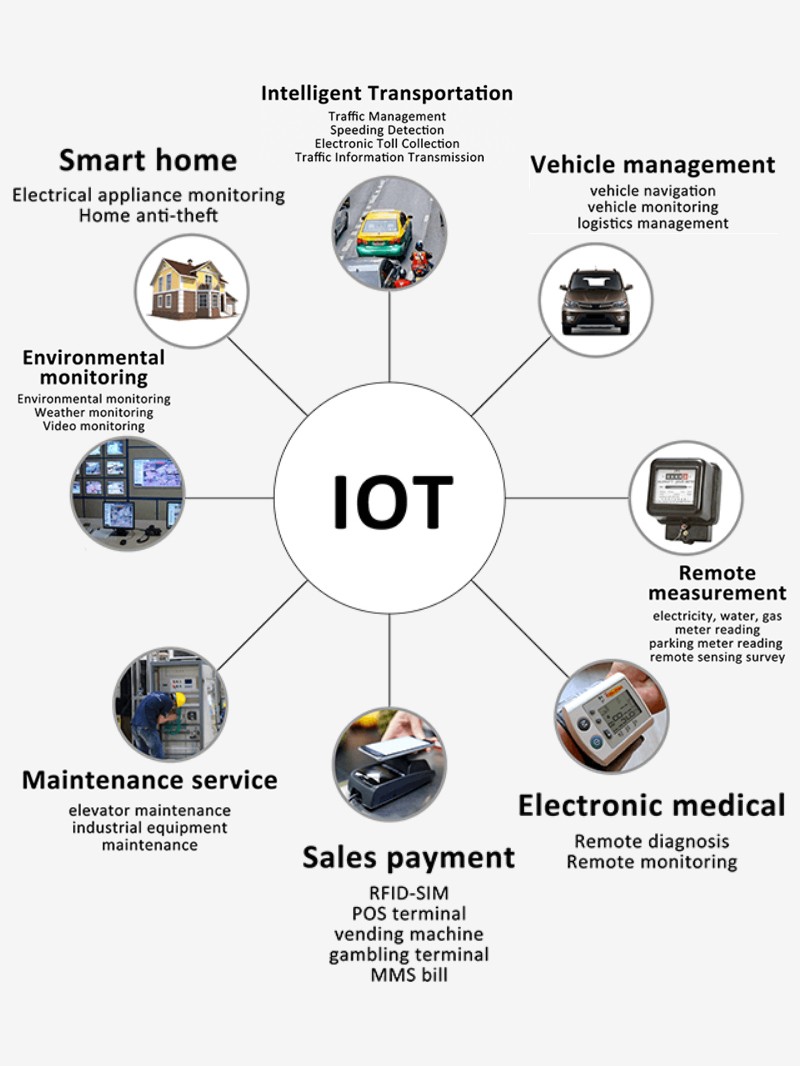

Application Scenario

Ideal for

Commercial display, Digital Signage, Smart home

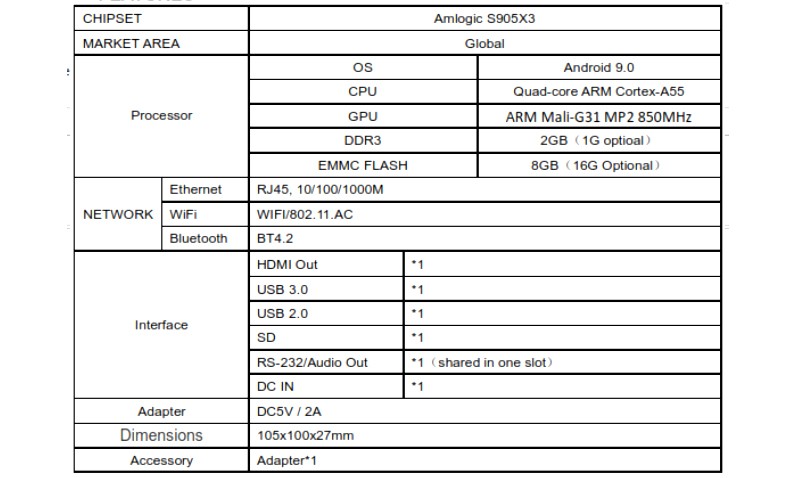

• Quad-core ARM Cortex-A55 CPU, Android 9.0 OS

• Support 2GB DDR3, 8GB eMMc flash, external expansion storage Micro SD card (Max 128G)

• One USB3.0 Type-A and one USB2.0 Type A, Micro SD Card slot

• Built-in Wi-Fi (Support 2.4G and 5.8G) / BT4.2, 10M/100M/1000M LAN interface

• One HDMI-out, Up to 3840 * 2160 60hz (VI) Support RS- 232/Audio Out (Pins shared)

• Applicable to commercial display player  SUPPORT 12*7
